DMM ANSI Ultra D Locksafe Carabiner
$51.49

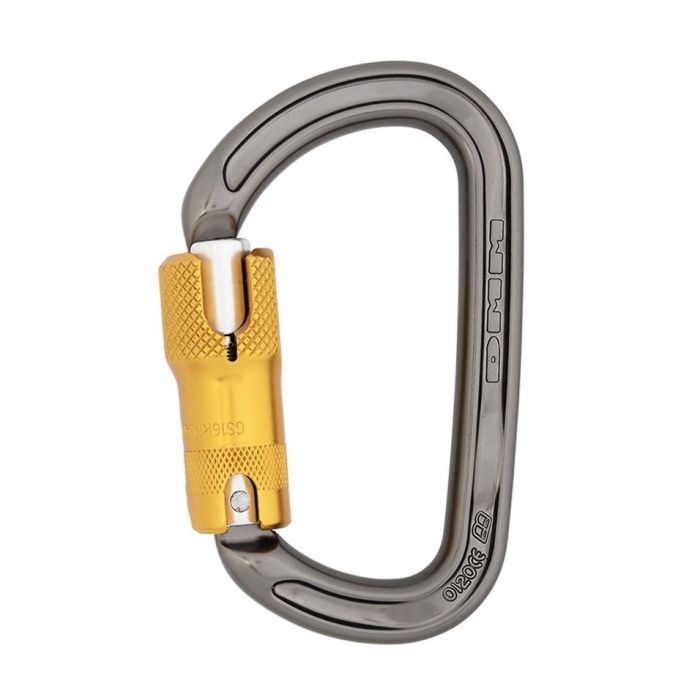

The Ultra D from DMM is similar in size to the Ultra O but with even greater strength due to the back configuration. The pronounced D-shape forces the loading along the major axis of the carabiner to maximize strength. Perfect for use at the end of lanyards, and in fact for most other working at height applications. This version includes the beefy ANSI gate which has the same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
In stock
MPN:
A337ANSI
D-shaped connector bodies are designed to force the loads closer to the spine of the connector (the strongest orientation), therefore maximising strength. These are probably the most basic of all connectors in terms of shape, but this makes them a perfect choice in applications where strength and simplicity are paramount.
DMM's patented Taperlock closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.
Dimensions: 66mm x 113mm
Weight: 100 grams
MBS (Major Axis): 30kN
MBS (Minor Axis): 16kN
MBS (Gate Open): 9kN
Gate Opening: 16mm
