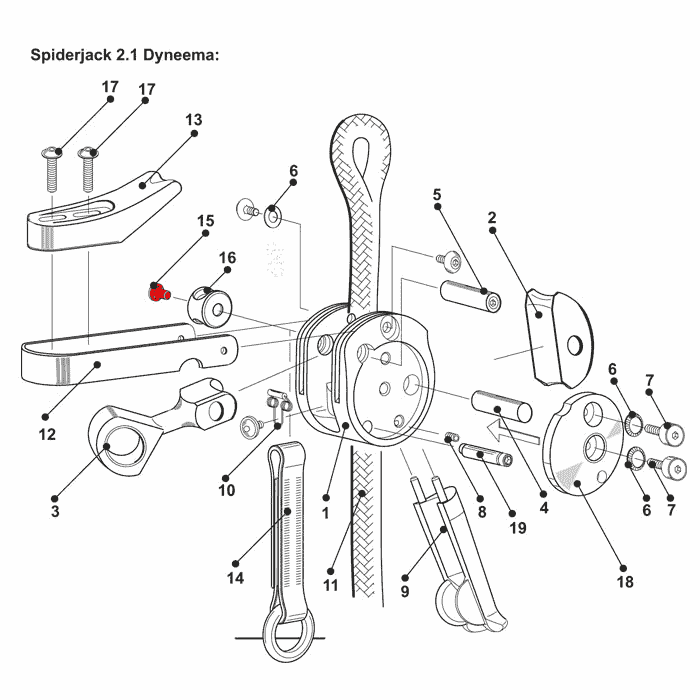

ART SpiderJack 2.1 Replacement Parts

Release Lever:  Long anodized handle with cam for the SpiderJack 1, 2 and 2.1 rope control devices.

11 - 13 mm Cam:  Friction clutch of the SpiderJack 2.1 rope control device.

Cam Mount Bolt:  Bearing pin for the clutch of the SpiderJack 2.1

Spring with Screw:  Spare spring for the SpiderJack 2.1 rope control device.

Velcro Strap:  Velcro Strap with screw for the SpiderJack 2.1 Basic rope climbing device.

Body: Body for the SpiderJack 1, 2 and 2.1 rope control devices with spring and WearPin. Suitable hex-wrench included.

• Please note, that in case of purchase and mounting of a new body the instruction manual of the original SpiderJack still persists. The maximum service life of the SpiderJack won't be extended. The mounting of the new body has to be documented on the PPE page (on the last pages) of the instruction manual.

Complete Dyneema Extension Kit:  Set with Dyneema-Sling and all required attachments.

Dyneema Sling with Steel Ring:  Dyneema sling with ring made of stainless steel for the SpiderJack 1, 2 and 2.1 rope control devices.

Adapter Flange:  Flange for the Dyneema sling of the SpiderJack 2.1 rope control device.

Fixing Rubber Rings:  5 exactly cut rubber rings for fixing the SpiderJack or 2-eye split tails, pulleys etc. on a carabiner.

• Diameter inside: 19.5 mm
• Diameter outside: 10 mm
• Width: 10 mm

Bearing Screw for Flange:  Bearing screw for the flange of the SpiderJack 2.1 rope control device.

Wear Pin:  Pin made of carbide metal in exchange for wear on the tool body of the SpiderJack 2.1 rope control device.

Wooden Brake:  The wooden layer used with the SpiderJack 2.1 brake lever is made of pock wood, an especially hard and heavy wood.

Mounting Plate for Brake Lever:  Mounting plate for the brake lever of the SpiderJack 2.1 rope control device.
