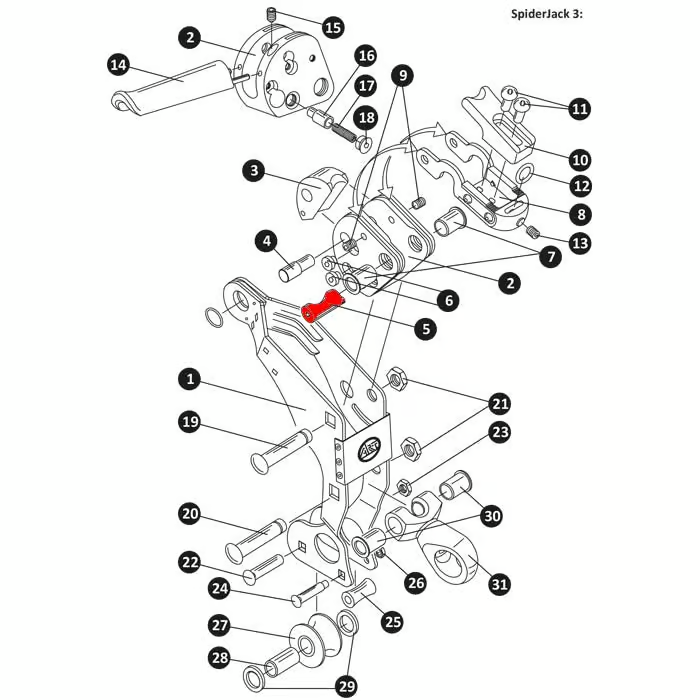

ART SpiderJack 3 Replacement Parts

Release Lever: Long anodized handle with cam for the SpiderJack 3 rope control device. Grub screw included.

Body: Body for the SpiderJack 3 rope control device including clutch type B, wooden brake and wear pin.

• Please note, that in case of purchase and mounting of a new body the instruction manual of the original SpiderJack still persists. The maximum service life of the SpiderJack won't be extended. The mounting of the new body has to be documented on the PPE page (on the last pages) of the instruction manual.

Wear Pin: Pin made of carbide metal in exchange for wear on the tool body of the SpiderJack 3 rope control device.

Grub Screw for Release Lever: Grub screw for fixing the release lever of SpiderJack and Positioner.

Locking Bolt Spring: Spare spring for the locking mechanism of the SpiderJack 3 rope control device.

Carabiner Rubber: O-Ring for the upper carabiner adaptor of the SpiderJack 3 rope control device. The ring keeps the carabiner in place and reduces unwanted twists.

• Outer diameter: 17 mm
• Inner diameter: 11 mm
• Width: 3 mm

Roller Large: Large roller for the SpiderJack 3 rope climbing device.

Roller Small: Small roller for the SpiderJack 3 rope climbing device.

Clutch A (Black): Friction clutch for the SpiderJack 3 rope control device.

• Recommended ropes:
  • Cousin Atrax (Ø 11.6 mm)
  • FTC Argiope (Ø 11.7 mm)
  • Liros Safe Vision (Ø 11.8 mm)
  • Samson Velocity Cool & Hot (Ø 11.0 mm)
  • Teufelberger Tachyon Green & Orange (Ø 11.0 mm)
  • Yale Blaze (Ø 11.0 mm)

Clutch B (Red): Friction clutch for the SpiderJack 3 rope control device.

• Recommended ropes:
  • FTC Argiope (Ø 11.7 mm)
  • Gleistein Black & Red Lizard, Golden Viper (Ø 11.5 mm)
  • Liros Safe Vision (Ø 12.8 mm)
  • Tango Vision Flash & Fox (Ø 12.8 mm)
  • Teufelberger Tachyon Green & Orange (Ø 11.0 mm)
  • Yale Blue Moon (Ø 11.7 mm)
  • Yale Imori (Ø 12.0 mm)

Clutch C (Silver): Friction clutch for the SpiderJack 3 rope control device.

• Recommended ropes:
  • Edelrid Direction Up (Ø 13.0 mm)
  • Tango Vision Flash & Fox (Ø 12.8 mm)
  • Tango Ergo Brazil & Pink (Ø 13.5 mm)

Wooden Brake: The wooden layer used with the SpiderJack 3 brake lever is made of pock wood, an especially hard and heavy wood.

• The SpiderJack brake lever is made of pock wood, an especially hard and oily wood. Most of the precious pock wood comes from Central America, traded only under strict legal control. Its botanical name is Guajacum. Depending on its geopgraphical origins, Guajacum carries additional names like coulteri (Mexico) or officinale (Antilles). In Europe the name „pock wood“ derives from the times, when its resin was used in the fight against pox. Because of its high proportion of oil and its great density, pock wood is a well known natural product featuring an outstanding abrasion resistance. Even the drive shafts of steam ships were mounted on pock wood. It is well known, wood is a poor conductor of heat, even more so with pock wood. So naturally, controlling a rope with the SpiderJack‘s pock wood brake conducts very little heat.
