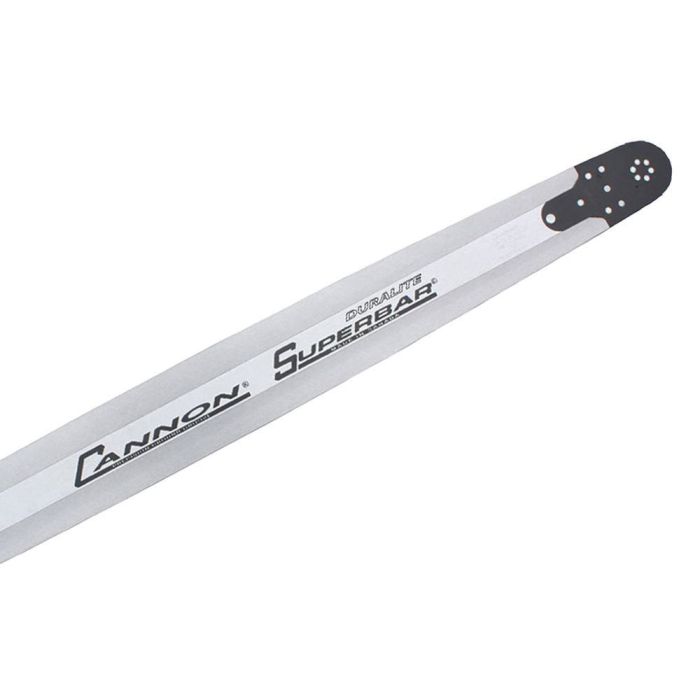

Cannon Duralite SuperBar Sprocket Nose C1 Chainsaw Bar
.325" Pitch .063" Gauge for Husqvarna and more (K095 Bar Mount)
Cannon Duralite bars are made from formulated, cold rolled, annealed, heat treated, surface ground, and stress relieved steel. This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.
Pitch: .325"
Gauge: .063"
Cannon Bar Mount: C1
Oregon Bar Mount: K095
The Cannon SuperBar power plus profile maximizes cutting power and chain speed while reducing damage from loose chain.
A precision ground groove to within .002″ means straighter cuts. Each groove is individually centered for even rail wear and superior durability. This increases rail strength and reduces damage from pinches. Also, if the chain rides exactly square to the rail, the result is smoother and straighter cutting. Milling marks, commonly found in the competitions bars, are eliminated. Thus, the groove is tighter and sloppy chain travel occurs much less.
Cannon SuperBars have flame tempered rails that are hardened to 5 points more than the tie straps on the chain for much longer bar life. This hardening penetrates deep to allow for multiple bar repairs and rebuilds. With the chain running straight and true, the result is a faster and smoother cut.
- Precision squared and flame hardened rails
- Stress relieved heel prevents cracking and reduces vibration
- Precision ground groove to 0.003″ for smooth, straight cutting
C1 Mount fits chainsaws equipped with 8.2mm bar studs (Oregon K095)
- Alpina/Castor
- A-40, C-40, CP-41, CP-45, CP-540, CP-600, P-370, P-410, P-460, P510, PRO-41, PRO-45, PRO-540, PRO-600
- CubCadet
- CS5018, CS5220, CS5720
- Dolmar
- 109, 110, 111, 112, 113, 114, 115, 117, 118, 119, 120, 110 EX, 116 si, 120 si, 120 Super, PS-460 (3/8" Pitch), PS-510 (3/8" Pitch), PS-5100, PS-5100 S (3/8" Pitch), PS-5105, 5105H (3/8" Pitch), PS-6800, PS-6100 (3/8" Pitch)
- Ecfo
- 156 (.375 Pitch), 165
- Homelite
- 30
- Husqvarna
- 444, 140, 133, 260, 154, 238, 234, 261, 246, 242, 257, 254, 262 XP, 340, 345, 346 XP, 350, 353, 351, 357 XP, 359, 362 (8.2mm Studs), 38, 40, 44, 42, 435, 440, 445, 45, 450, 450 Rancher, 49, 455, 455 Rancher, 50, 51, 55, 55 Rancher, 555, 560, 460, 460 Rancher, 545, 550 XP, 543 XP
- Jonsered
- 2050 (3/8" Pitch), 2149 (3/8" Pitch), CS 2152 (3/8" Pitch), CS 2153 (3/8" Pitch), 2051 (3/8" Pitch), 2054 (3/8" Pitch), 2055 (3/8" Pitch), 2063 (3/8" Pitch), 2163 (3/8" Pitch), 2159 (3/8" Pitch), 2150 (3/8" Pitch), CS 2150 (3/8" Pitch), CS 2147 (3/8" Pitch), CS 2156 (3/8" Pitch), CS 2159 (3/8" Pitch), CS 2163 (3/8" Pitch), CS 2250 (3/8" Pitch), CS 2252 (3/8" Pitch), CS 2253 (3/8" Pitch), CS 2255 (3/8" Pitch), CS 2258 (3/8" Pitch), CS 2260 (3/8" Pitch)
- Makita
- DCS 510, DCS460, EA5000P
- Poulan
- 5020AV Poulan Pro
- Solo
- 651, 651SP (3/8" Pitch), 652 (3/8" Pitch), 654 (3/8" Pitch), 656 (3/8" Pitch)
- Shindaiwa
- 5000
- Stihl
- 3005
- Oregon
- A014 / K041 / T041, A061, A064, A074, A095 / K095 / T095 / Z095, A318
