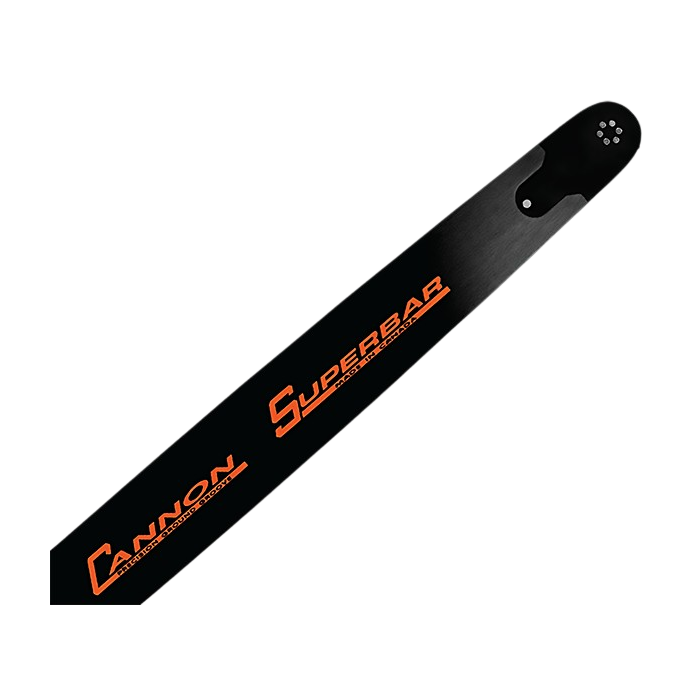

Cannon SuperBar Sprocket Nose H1 Chainsaw Bar

The Cannon SuperBar power plus profile maximizes cutting power and chain speed while reducing damage from loose chain.

A precision ground groove to within .002″ means straighter cuts. Each groove is individually centered for even rail wear and superior durability. This increases rail strength and reduces damage from pinches. Also, if the chain rides exactly square to the rail, the result is smoother and straighter cutting. Milling marks, commonly found in the competitions bars, are eliminated. Thus, the groove is tighter and sloppy chain travel occurs much less.

Cannon SuperBars have flame tempered rails that are hardened to 5 points more than the tie straps on the chain for much longer bar life. This hardening penetrates deep to allow for multiple bar repairs and rebuilds. With the chain running straight and true, the result is a faster and smoother cut.

• Motor mounts available for most makes and models of chainsaws
• Precision squared and flame hardened rails
• Stress relieved heel prevents cracking and reduces vibration
• Precision ground groove to 0.003″ for smooth, straight cutting

H1 Mount fits the following chainsaws with 9.0 mm bar studs. (Oregon bar mount D009)

Dolmar:  PS-6400, PS-6400 H, PS-6400 W, PS-7300, PS-7300 H, PS-7300 W, PS-7310, PS-7300 H, PS-7310 W, PS-7900, PS-7900 H, PS-7900 W, PS-7910, PS-7910 H, PS-7910 W, PS-9000, PS-9010, PS-9010F

Husqvarna:  570, 1100 CD, 162, 181, 2100 CD, 2101, 272 XP, 298, 3120 XP, 266 XP, 268, 185, 160, 281, 362 (9mm Studs), 371 XP, 372 XP, 380, 385 XP, 390 XP, 394 XP, 395 XP, 365, 480 CD, 70, 562 XP, 575 XP, 66, 77, 65, 576 XP, 61, 285, 288 XP, 465, 465 Rancher

Jonsered:  625, 630, 670, 2065, 2071, 2077, 2083, 2094, 2095, 2165, 2171, 2186, CS 2188, CS 2166, CS 2172, Ripping Mill, CS 2165, CS 2171, CS 2186

Makita:  DCS6401, DCS6800, DCS7301, DCS7901, DCS9000, DCS9010FL

Poulan:  425, 445, 475, 505, PRO415

Shindaiwa:  550, 575, 577, 680, 695, 757

Solo:  603, 662, 665, 667, 670, 675, 680, 681, 690, 694
