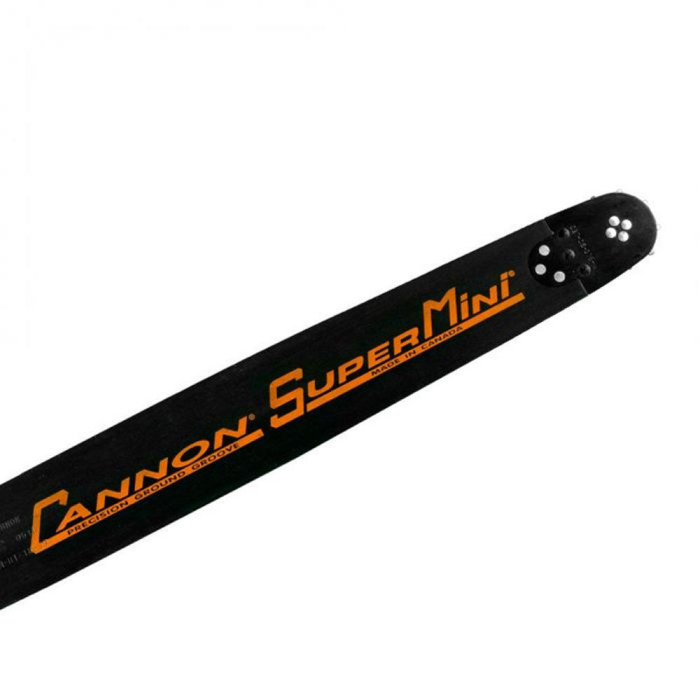

Cannon SuperMini Sprocket Nose C1 Chainsaw Bar

For bucking, limbing, building, carving, or trimming, Cannon SuperMini Bars will help you get the job done. These handcrafted professional bars enable the user to perform a wide range of tasks. SuperMini Bars are not recommended for making bore cuts.

All Cannon SuperMini bars are skillfully hand made and put through rigorous quality assurance checks prior to packaging.

These bars are constructed with custom alloy steel that is cold rolled, heat treated, annealed, stress relieved and surface ground.
This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.

Precision squared and flame hardened rails allow for chain to run straight and true, enhancing the speed and smoothness of cut.

• Designed for use with narrow kerf chain on chainsaws under 60 CC
• Narrow profile for high maneuverability. 1.75″ tip diameter (2.5″at widest point of bar)
• Available in .325″ pitch and 3/8″ low profile.
• Motor mounts available for most makes and models of chainsaws
• Precision squared and flame hardened rails for a long lasting bar
• Available in .050″ gauge
• Precision ground groove to 0.003″ for smooth, straight cutting

C1 Mount fits the following chainsaws equipped with 8.2mm bar studs (Husqvarna bar mount K095)

Alpina/Castor:  A-40, C-40, CP-41, CP-45, CP-540, CP-600, P-370, P-410, P-460, P510, PRO-41, PRO-45, PRO-540, PRO-600

CubCadet:  CS5018, CS5220, CS5720

Dolmar:  109, 110, 111, 112, 113, 114, 115, 117, 118, 119, 120, 110 EX, 116 si, 120 si, 120 Super, PS-460 (3/8" Pitch), PS-510 (3/8" Pitch), PS-5100, PS-5100 S (3/8" Pitch), PS-5105, 5105H (3/8" Pitch), PS-6800, PS-6100 (3/8" Pitch)

Efco:  156 (.375 Pitch), 165

Homelite:  30

Husqvarna:  444, 140, 133, 260, 154, 238, 234, 261, 246, 242, 257, 254, 262 XP, 340, 345, 346 XP, 350, 353, 351, 357 XP, 359, 362 (8.2mm Studs), 38, 40, 44, 42, 435, 440, 445, 45, 450, 450 Rancher, 49, 455, 455 Rancher, 50, 51, 55, 55 Rancher, 555, 560, 460, 460 Rancher, 545, 550 XP, 543 XP

Jonsered:  2050 (3/8" Pitch), 2149 (3/8" Pitch), CS 2152 (3/8" Pitch), CS 2153 (3/8" Pitch), 2051 (3/8" Pitch), 2054 (3/8" Pitch), 2055 (3/8" Pitch), 2063 (3/8" Pitch), 2163 (3/8" Pitch), 2159 (3/8" Pitch), 2150 (3/8" Pitch), CS 2150 (3/8" Pitch), CS 2147 (3/8" Pitch), CS 2156 (3/8" Pitch), CS 2159 (3/8" Pitch), CS 2163 (3/8" Pitch), CS 2250 (3/8" Pitch), CS 2252 (3/8" Pitch), CS 2253 (3/8" Pitch), CS 2255 (3/8" Pitch), CS 2258 (3/8" Pitch), CS 2260 (3/8" Pitch)

Makita:  DCS 510, DCS460, EA5000P

Oregon:  A014 / K041 / T041, A061, A064, A074, A095 / K095 / T095 / Z095, A318

Poulan:  5020AV Poulan Pro

Solo:  651, 651SP (3/8" Pitch), 652 (3/8" Pitch), 654 (3/8" Pitch), 656 (3/8" Pitch)

Shindaiwa:  5000

Stihl:  3005
