DMM Klettersteig Locksafe ANSI Captive Bar Carabiner
SPECIAL ORDER ~4 Weeks

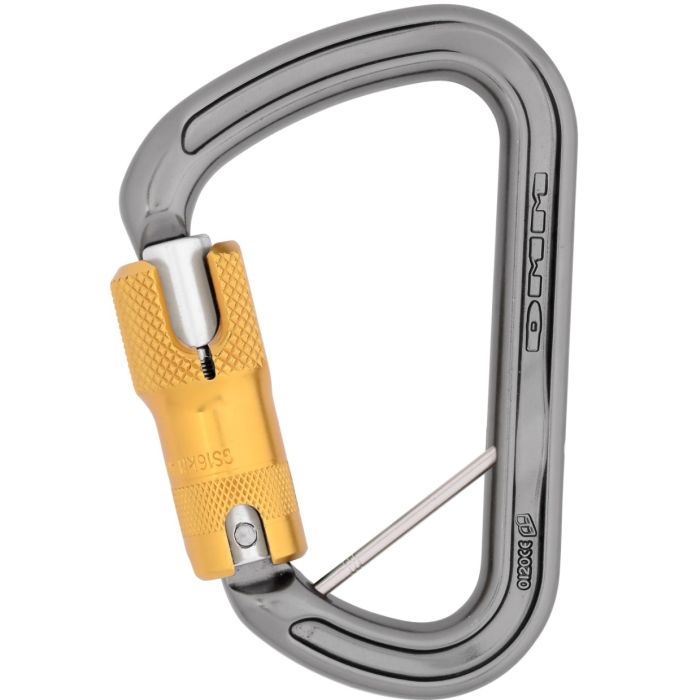

Our Klettersteig carabiner's wide gate opening and long flat basket make it ideal for clipping webbing and for use in complex rope-running applications. The expanded D shape also keeps the load along the major axis maximising strength. Large size makes it easy to use with gloved hands.
Klettersteig for size
Klettersteig connectors look and behave very similarly to Offset Ds, but are wider. This design helps maximise the gate opening and the internal working volume, whilst still allowing any loads to be located as close to the spine of the connector as possible. Klettersteig connectors must pass an additional test to any of the other connectors as they are often subjected to loads in sub-optimal orientations.
Keylock clean nose for snag free connection
DMM's patented Taperlock closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.
Easy to use with gloved hands
A big carabiner back and ANSI gate types are easier to handle with gloves.
Locksafe
Auto-locking gate requiring three distinct actions to open.
Certifications
- EN362:2004 B/T
- EN12275:2013 B/T/K
- ANSI/ASSE Z359.12-2019
- CAN/CSA Z259.12-16
Dimensions: 3 x 4.7 inches (77 x 120mm)
Weight: 3.8 oz (109g)
MBS (Major Axis): 6,744 lbs (30kN)
MBS (Minor Axis): 3,597 lbs (16kn)
MBS (Gate Open): 2,248 lbs (10kN)
Gate Opening: .83 inches (21mm)
