DMM Rigger Pulley Becket

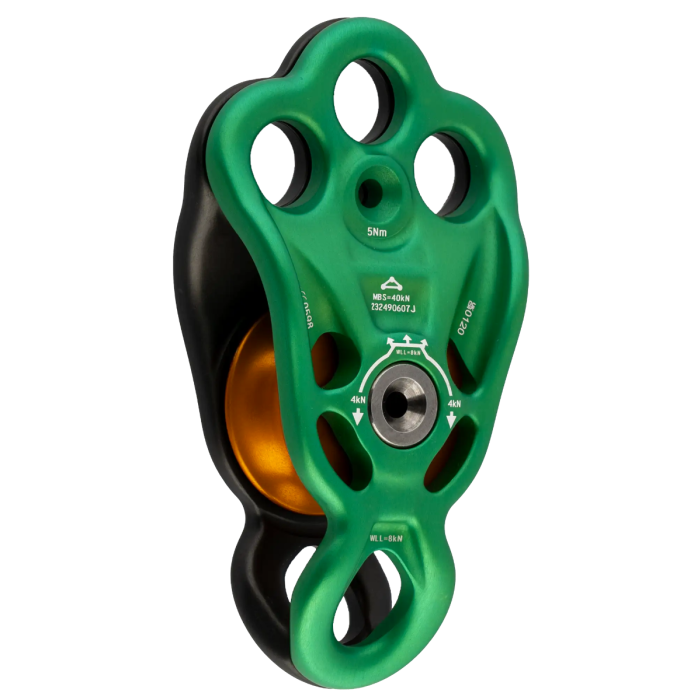

The DMM Rigger Pulley Becket is a hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulley Becket features a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
The DMM Rigger Pulley Becket is a hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulley Becket features a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.
FEATURES
-
Ultra-high strength pulley side plates
-
High efficiency roller bearings
-
Hollow axle for reduced weight
-
Increased rope-bearing cross-section for textile attachments to the attachment holes
-
Same sheave as previous Triple Attachment Pulley
-
New axle design to increase robustness of the axle/nut to side plate interface
-
Optional M5 nut and bolt for locking side plates together and can be installed from either side
-
DMM iD optional
-
Can be used as rig plate with or without sheave
Specifications
- Sheave Diameter: 28mm
- Weight: 198g
- WLL: 8kN
- MBS: 44kN
- Conformance: EN12278:2007 NFPA 1983 (2017)G
