FTC Micro Cylindre Aluminum Lowering Device
The Micro-Cylindre 2.1 from FTC is a friction device for 14mm (9/16 inch) rigging rope used in tree care work. Weighing in at only 1.7 kg (3.75 lbs) and having an MBS at 40 kN, the FTC Micro-Cylindre provides the best weight to breaking strength ratio available. It’s ready to install, so just pop open the storage box when it arrives.

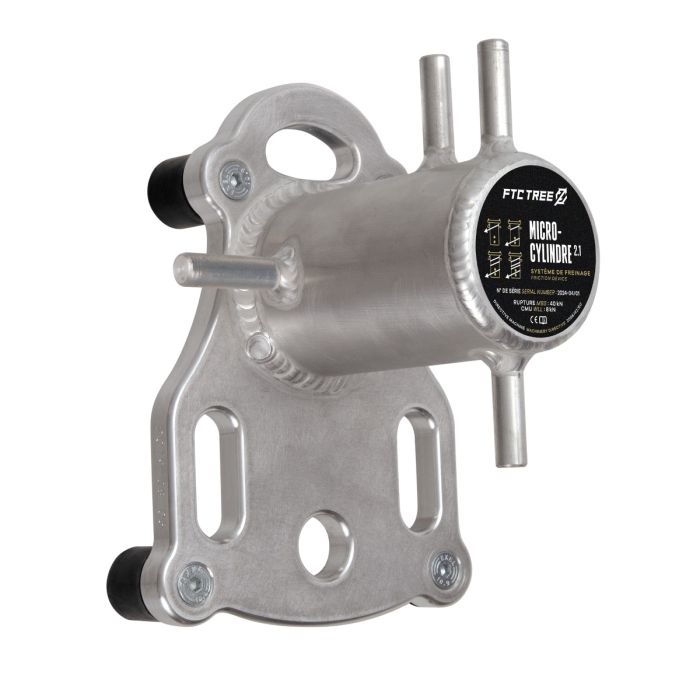

This is the most compact and lightweight friction system in its category. Made entirely of aluminium, the Micro-Cylindre doesn't heat up or burn ropes. The rubber bumpers keep it stable. The round ring on the top allows for reeving, and two fairleads at the tip of the cylinder keep the rope wraps in place and prevent overlapping. The symmetrical design allows a worker on foot to stand to the right or the left.
- Includes Ratchet Strap and Carrying Case
Maximum Rope Diameter: 14mm (9/16 inch)
MBS: 40 kN (9,000 lbs)
WLL: 8 kN (1,800 lbs)
Unit Weight: 1.7 kg (4.9 kg with strap and transport box)
Plate Dimensions: 225mm high x 165mm wide x 15mm thick
Bollard Diameter: 75mm (3 inches)
Strap Length: 9 meters (25 feet) for trees up to 2 meters (6.6 feet) in diameter
Case Dimensions: 30 cm x 40 cm x 19.5 cm high (11.8 inches x 15.77 inches x 7.7 inches high)
