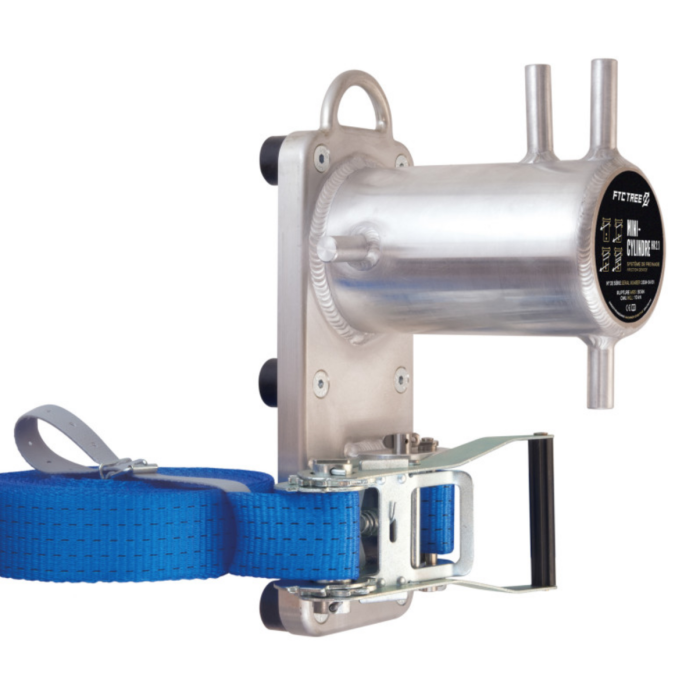

FTC Mini Cylindre Aluminum Lowering Device
FTC presents the easy-to-install, extremely strong Mini Cylindre HR 2.1 Lowering Device for 16mm (5/8 inch) rigging lines. It is made of aluminum which means it doesn’t heat up and burn your tree rigging ropes. This allows for precise rigging with little effort.
The round upper ring enables reeving, and two fairleads at the end of the cylinder prevents losing wraps and overlapping of the rope. A third fairlead under the cylinder enable a finer, more precise rigging. 6 rubber silent blocks protect the tree and ensure stability of the cylinder when loaded. The symmetry of the device allows left or right location of the ground crew.
- Includes Ratchet Strap and Storage Case
Details
Maximum Rope Diameter: 16mm (5/8 inch)
Unit Weight: 3.6 kg (6.61 lbs)
MBS: 50 kN (11,200 lbs)
WLL: 10 kN (2,248 lbs)
Plate Dimensions: 340 mm high (13.4 inches) x 120 mm wide (4.7 inches) x 20 mm thick (0.2 inch)
Bollard Diameter: 100 mm (3.9 inches)
Strap Length: 9 m (29 feet) for trees up to 2 meters (6.6 feet) in diameter
Case Dimensions: 30 cm x 40 cm x 23.5 cm high (11.8 inches x 15.7 inches x 9.3 inches high)
Total Weight: 7.2 kg (15.8 lbs) with strap and transport case
