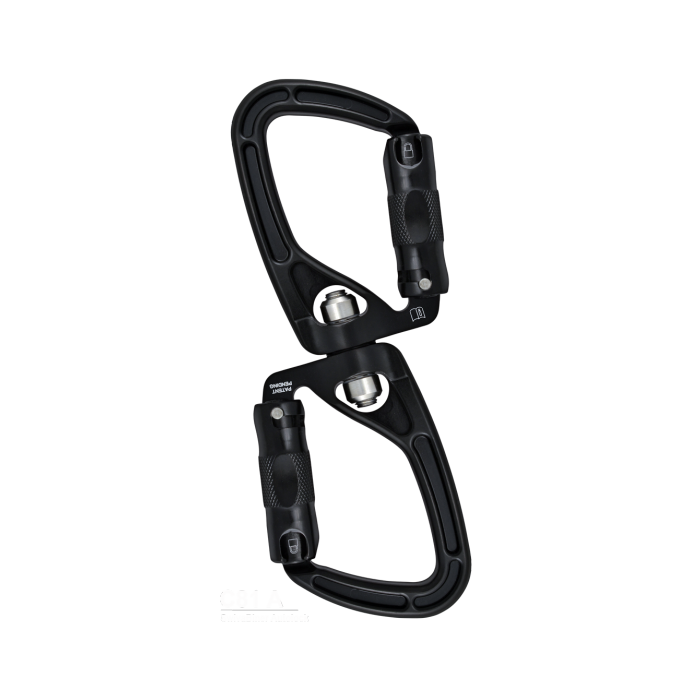

Rock Exotica SwivaBiner
The SwivaBiner combines a swivel and two carabiners and excels at orienting gear and lines to the proper position. The swivaBiner is an excellent connector for attaching pulleys, belay devices, and other equipment to rigging plates. With the swivaBiner, each device and line can be oriented to position the controls of the device in-line with the operator, as shown in the images of the swivaBiner in use.
The SwivaBiner features a high-strength bushing that will withstand greater abuse than a bearing. The SwivaBiner is designed to re-orient a load, and not provide high-speed rotation.
Weight: 5.9 oz (166 gm)
-Major axis: 30 kN
- Minor axis: 7 kN
- Open gate: 12 kN
Gate opening: .84” (21 mm)
The frame of the SwivaBiner and SwivaEye are machined out of a solid block of aluminum to allow for the complex shape required to attach a swivel at the bottom end. Each frame is milled along the side to remove excess material and weight.
Pull Down Gate
The gate on the Autolock versions use the same ergonomic pull-down and twist mechanism as our other autlocking carabiners.
- Allows free orientation of load
- Helps prevent line twist
- Features high-strength bushing
- Not for high-speed rotation
- Machined from solid material to optimize strength and weight savings
