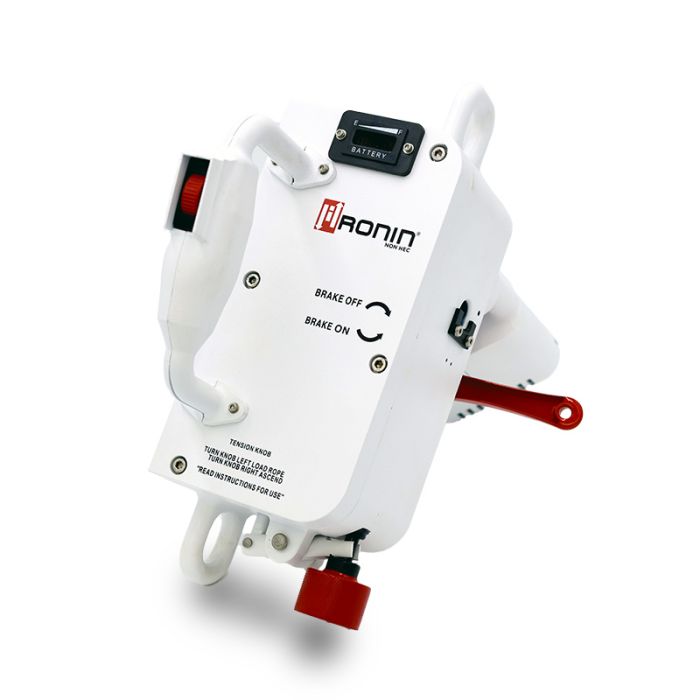

Ronin Lift Kit (Non-HEC)
For the companies that separate their material hauling lifting equipment from their personnel lifting equipment, we have the Ronin NON HEC Lift.
The NON HEC Lift is a dedicated Lift that will handle any material hauling needs you have. The safe working load 400 lbs. (181 kg) but you can add mechanical advantages up to 4:1, which means loads of up to 1600 lbs. (726kg) can be accommodated. Both the Ronin Lift anchor points are rated at 5,000 lbs. for confident rigging.
RONIN Non-Human External LIFT
For the companies that separate their material hauling lifting equipment from their personnel lifting equipment, we have the Ronin NON HEC Lift.
The NON HEC Lift is a dedicated Lift that will handle any material hauling needs you have. The safe working load 400 lbs. (181 kg) but you can add mechanical advantages up to 4:1, which means loads of up to 1600 lbs. (726kg) can be accommodated. Both the Ronin Lift anchor points are rated at 5,000 lbs. for confident rigging.
With the wireless remote function your teams can raise or lower loads from a safe distance.The variable speed control is smooth and makes it easy to control the heaviest loads. Winch loads in complete confidence with the Ronin NON HEC Lift. Pair up your NON HEC Lift with one of our Pole Mounts, Hitch Mounts or Tripod Mounts.
FEATURES:
- 400 lbs. (181 kg) Safe Working Load
- Variable Speed Control (0.5 – 1.5 ft./sec)
- Hands-Free Braking System
- Gravity Feed Descent
- Automatic End Feed Rope Loading
- Safely Secures Rope inside the Lift & Prevents Accidental Detachment
- Allows for Angled Ascents
- Hot-Swappable Battery
- Lithium Rechargeable Battery
- Water Resistant IP54 Rating
- Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
- Mechanical Advantage Allowed up to 4:1 ratio to lift, up to 1600 lbs. (725 Kg)
- CE Certified (EC and EU Type Examination Cert)
APPLICATIONS:
- Power Utilities
- Oil & Gas
- Wind Tower Access
- Cell Tower Access
- Arborcare
- Entertainment Rigging
- Construction
- Building Maintenance
- SPRAT/IRATA rope work support
- Confined Space
- Sports/Recreation
RONIN Non-Human External Cargo KIT (NON HEC) KIT INCLUDES:
- 1 Ronin Lift Ascender
- 1 Wireless Remote
- 1 Anti-Panic Handle
- 1 Reverse Function
- White Powder Coat Finish to Designate For Material Hauling
- 2 Battery
- 2 Charger
- 2 Charger Cable – Type A, B or C
- 1 Hard Case w/Custom Foam
- 1 Rope Brush
- 1 Rubber Motor Protector
- 1 Perfect Burn Tip
Category: Battery Powered Rope Ascender

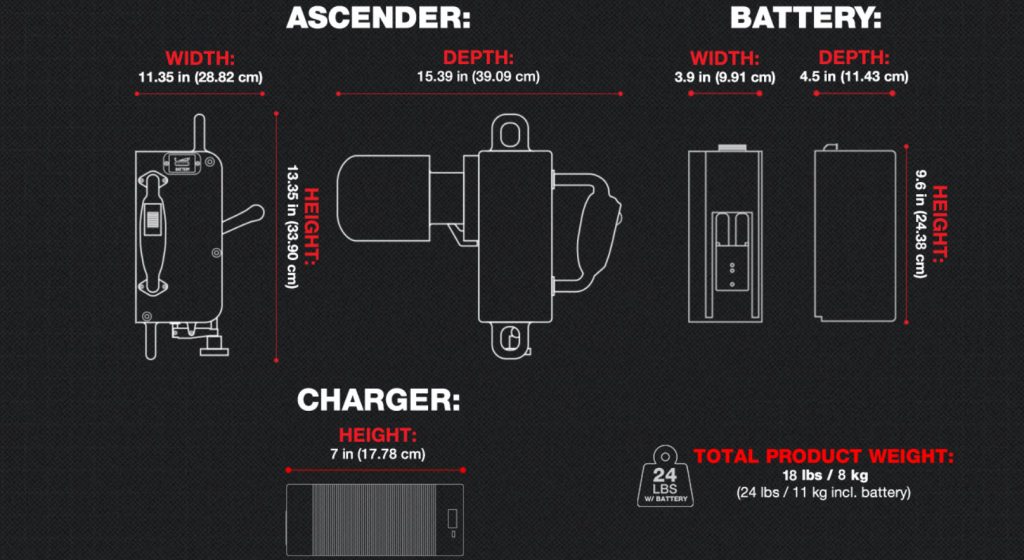

Width (W): 11.35 in.
Depth (D): 15.39 in.
Height (H): 13.35 in.
Weight: Approximately 24 lbs.
Construction: Aluminum, Stainless Steel and Bronze
Finish: Powder Coat Black
Operating Temperature Range: -4 ºF – 120 ºF
Ingress Protection: IP54
Battery Type: 28 VDC Lithium Ion Rechargeable
Battery Life Ascent: 350 ft. of rope @ 400 lbs.
Standard Battery: 700 ft. of rope @ 200 lbs.
Battery Re-Charge Time: Approximately 2 hours
Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope
Rope Loading: End Feed
Ascent Speed: Variable (0.5 – 1.5 ft./per second)
Descent Method: Gravity Feed with Manual Brake
Descent Speed: 3.5 ft./sec. max @ 400 lbs.
Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
Max Working Load: 400 lbs.
Product Certifications: CE Certified & ANSI Certified
Reverse Functionality: For Angled Ascents, winching applications, removing rope from the system.
