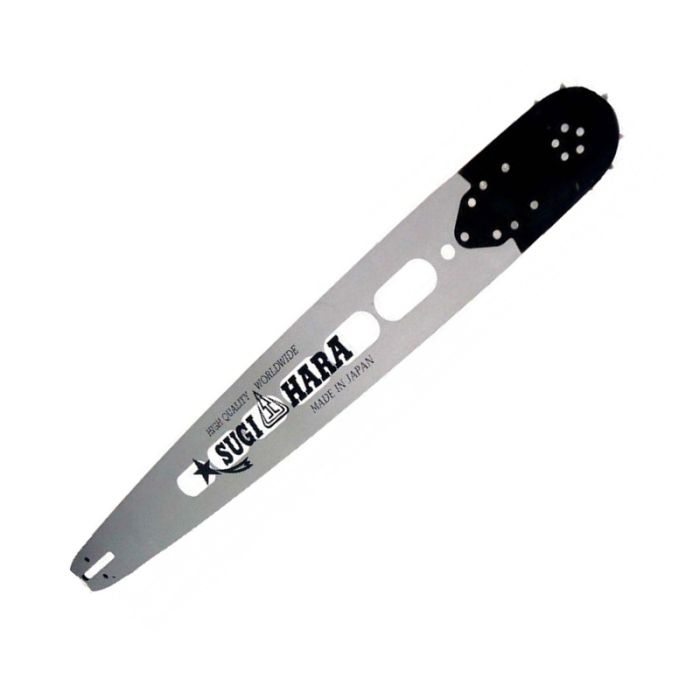

Sugihara VH Light Weight Chainsaw Bar
.325" Pitch .050" Gauge for Husqvarna and More (K095 Mount)
All Sugihara bars are free of defects in its metal which sets it apart when measured against other bars. Handling a lighter weight bar conserves energy which can be used to create greater production each day.
Pitch: .325"
Gauge: .050"
Oregon Bar Mount: K095
- Polished Steel Finish: No hidden blemishes to attract heat and create hot spots on the bar that ultimately shortens the useful life of the bar.
- Superior Rail Hardness: The rail edges are hardened more than the body of the bar which significantly reduces rail wear
- Flexibility: The body of the bar is hardened less than the rails to allow for flexibility when crimped, extending the useful life of the bar
- Lower Weight: Reduces required energy to carry the saw thereby reducing fatigue during the day and encouraging increased production
- Smaller Nose Curve: Significantly reduces burring that is developed in the bar channels. Reducing the amount of maintenance time.
Dolmar
PS-5100, PS- 5100 S (.325" Pitch), PS-5105, PS-5105 H (.325" Pitch), PS-510 (.325" Pitch), PS-460 (.325" Pitch), PS-6100 (.325" Pitch)
Efco
147, 152, 962, 156 (.325" Pitch)
Fairmount Hydraulic
38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513, Limblopper
Hitachi
CS40EA
Homelite
130, 150, 290, 300, 340, 150A0, CS50, d3350b
Husqvarna
33, 444, 140, 133, 137, 136, 142, 141, 260, 154, 238, 234, 261, 235, 240, 246, 242, 257, 254, 262 XP, 336, 340, 345, 346 XP, 350, 353, 351, 36, 38, 40, 41, 44, 42, 435, 440, 445, 45, 450, 450 Rancher, 49, 455, 455 Rancher, 50, 51, 55, 55 Rancher, 555, 560, 545, 550 XP, 339 XP, 543 XP
JohnDeere
CS46, CS52, CS56, CS62
Jonsered
45, 49, 50, 51, 52, 370, 410, 420, 425, 450, 451, 490, 510, 521, 525, 535, 590, 941, 2036 (.325 Pitch), 2040 (.325 Pitch), 2051 (.325 Pitch), 2054 (.325 Pitch), 2055 (.325 Pitch), 2063 (.325 Pitch), 2150 (.325 Pitch), 2159 (.325 Pitch), 2163 (.325 Pitch), 2050 (.325 Pitch), 2149 (.325 Pitch), CS 2153 (.325 Pitch), 435, 440 (.325 Pitch), 520SP, CS 2152 (.325 Pitch), 2045 (.325 Pitch), 2145 (.325 Pitch), 2141 (.325 Pitch), 2041 (.325 Pitch), CS 2040 (.325 Pitch), CS 2150 (.325 Pitch), CS 2147 (.325 Pitch), CS 2156 (.325 Pitch), CS 2159 (.325 Pitch), CS 2163 (.325 Pitch), CS 2250 (.325 Pitch), CS 2252 (.325 Pitch), CS 2253 (.325 Pitch), CS 2255 (.325 Pitch), CS 2258 (.325 Pitch), CS 2260 (.325 Pitch), CS 2240 (.325 Pitch), CS 2245 (.325 Pitch)
Makita
DCS430, DCS431, DCS520i, DCS6000i
Maruyama
D176-PL11, D176-PS11
McCulloch
46, 4700, 4900, 5000, 5500, 2046AV, 2049AV, MS1849, MS1850, MS2046, MS2049, MS2050, PM1845AV, ProMac 40, Silver Eagle 2818, Silver Eagle 3020, TimberBear20
Olympyk (Oleo‑Mac)
941, 945, 950, 951
Partner
410, 540, P-360, P-400, P-450, P-500, P-5000, PS-510 (.325)
Pioneer
1074, P-21, P-26, P-28
Poulan/PoulanPRO
325, 525, 235, 240 (.325 Pitch), S35
RedMax
G390, G450AVS, G455AVS
Sears/Craftsman
35084, 35201
Shindawa (SDK)
5000
Solo
613, 614, 631, 632, 638, 639, 641, 644, 645, 647, 650, 651, 651SP (.325" Pitch), 652 (.325" Pitch), 654 (.325" Pitch), 656 (.325" Pitch), 651SP
Stanley
CS05, CS06
Tanaka
ECS-4000, ECS-4000B, ECS-415, ECS-4501, ECV-4501, ECV-5601, TCS 40EA
Troy Bilt
TB4620, TB4920, TB5018, TB5020
